GemiClean VW

VESSEL WASHING MACHINE

TYPICAL FEATURES

  • Suitable for open top vessels and open top 200 ltr. drums.
  • 3 different models available: S, M & L:
    • GemiClean VW-S: Vessel from Ø600 - 1.050 mm. Vessel height up to 1.550 mm.
    • GemiClean VW-M: Vessel from Ø800 - 1.450 mm. Vessel height up to 1.550 mm.
    • GemiClean VW-L: Vessel from Ø950 - 1.750 mm. Vessel height up to 1.550 mm.

Note: Upon request also available for other vessel/drum dimensions.

  • Reliable and proven design.
  • Basic machine dimensions: 2.000 x 2.500 x 3.800 mm (WxDxH). Note: Lower version available upon request.
  • Fixation of the vessel by the lock-up cover and vessel clamping device.

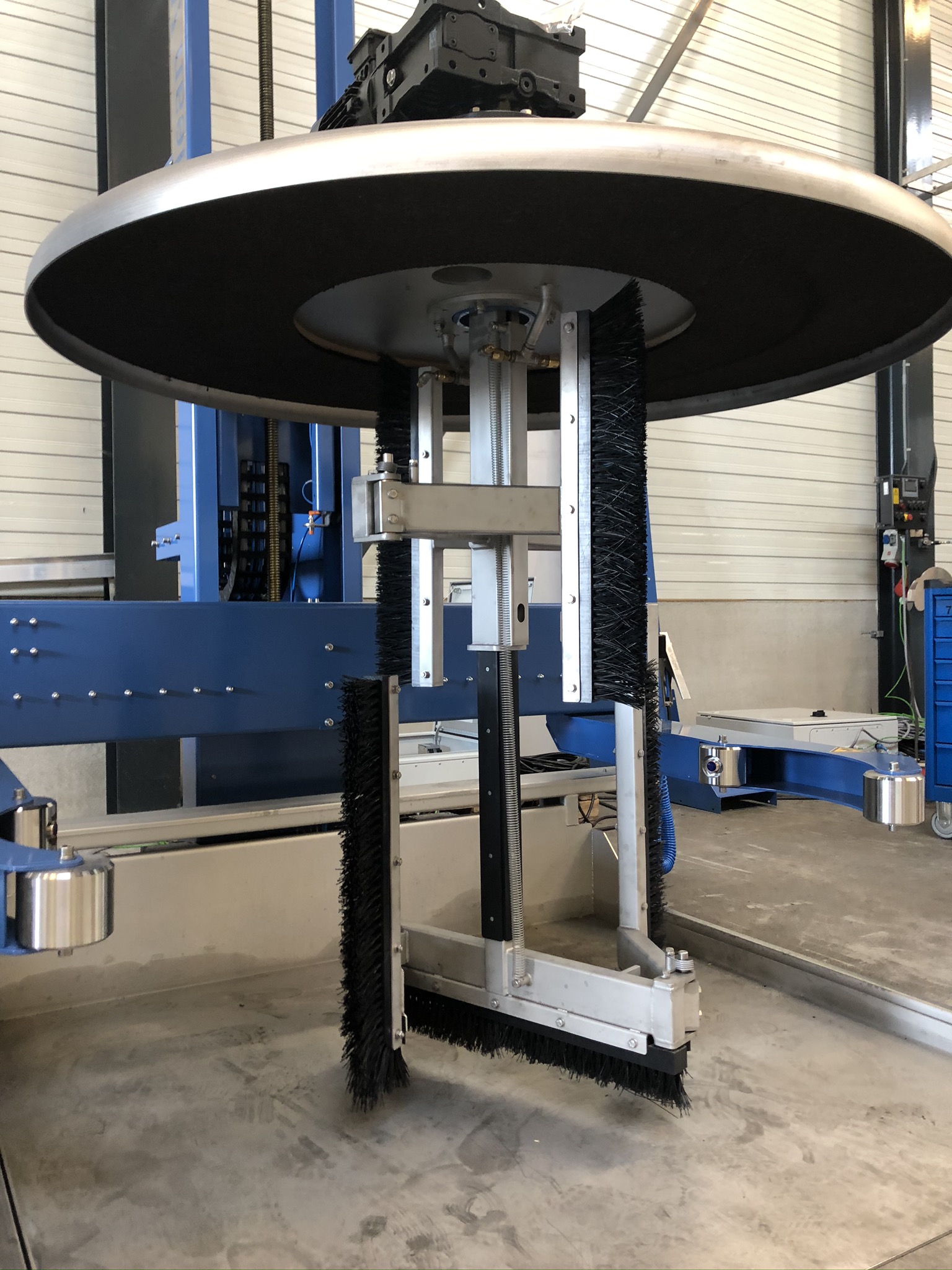

  • Cleaning of inside by means of rotating brushes (centrifugal force) and spray nozzle system.
  • Cleaning liquid: Water or solvent.
  • Lock-up cover provided with controlled valve for connection to exhaust system to remove fumes.

OPTIONAL SET-UP

  • Heating blankets for (sedimentation) tanks.
  • Insulation of tank and/or hoses.
  • Automatic detergent dispenser.
  • Scraper sedimentation tank.
  • Automatic discharge slurry.
  • Explosion proof execution according to ATEX Category 1 / 2 / 3.
  • Also available in Class 1 Division 1 (or 2).
  • Alternatively cleaning by means of a rotary spray head with high pressure pump.
  • Handling of mobile vessels without bottom outlet.
  • Nitrogen purging.
  • Safety by means of fencing and/or light curtain.
